Ohaus FC5515 Frontier 5000 Micro Series Multi-Function Benchtop Centrifuge, 44 x 1.5 / 2.0 ml-12 x 5 ml , 21,953 g - 120V |
|
| Frontier microliter benchtop centrifuges provide high-speed operation for spin-down applications requiring a wide variety of tube volumes and capacities. With refrigeration capabilities, multi-acceleration/deceleration settings, multiple safety features, and an unmatched capacity, Frontier provides stable liquid separation for life science applications requiring high-speed operation. more ... |
|
Laboratory Equipment >
Centrifuges >
Centrifuges
|
|
|
|
|
|
Features
Frontier microliter benchtop centrifuges provide high-speed operation for spin-down applications requiring a wide variety of tube volumes and capacities. With refrigeration capabilities, multi-acceleration/deceleration settings, multiple safety features, and an unmatched capacity, Frontier provides stable liquid separation for life science applications requiring high-speed operation.
- The intuitive control panel with rotary knob puts the ability to quickly set and recall speed and g-force, as well as control the temperature (R model only) at your fingertips.
- A powerful brushless induction motor, 10 acceleration and deceleration ratings, and memory for up to 99 commonly-used parameters are a few of Frontier 5515(R)’s features that propel high-performance.
- Frontier 5515(R) has a lid locking system and sensor that stops the centrifuge if the rotors become imbalanced, protecting the operator from being injured by the spinning rotors.
|
|
Other Ohaus Frontier 5000 Micro Centrifuges
|
Specifications
| Model |
FC5515 (120V) |
FC5515 (230V) |
FC5515R (120V) |
FC5515R (230V) |
| Maximum Capacity (Rotor) |
44 x 1.5 / 2.0ml;12 x 5 ml |
44 x 1.5 / 2.0ml;12 x 5 ml |
| Maximum Relative Centrifuge Force (x g) |
21,953 g |
21,953 g |
| Net Weight |
38 lb (17 kg) |
77 lb (35 kg) |
| Program memories |
99 |
99 |
| Rotor In Package |
N/A |
N/A |
| Acceleration Gear |
10 |
10 |
| Deceleration Gear |
10 |
10 |
| Lid lock |
Motor driven |
Motor driven |
| Safety Certification |
CE;FCC |
CE;FCC |
| Power Consumption |
280 W |
560 W |

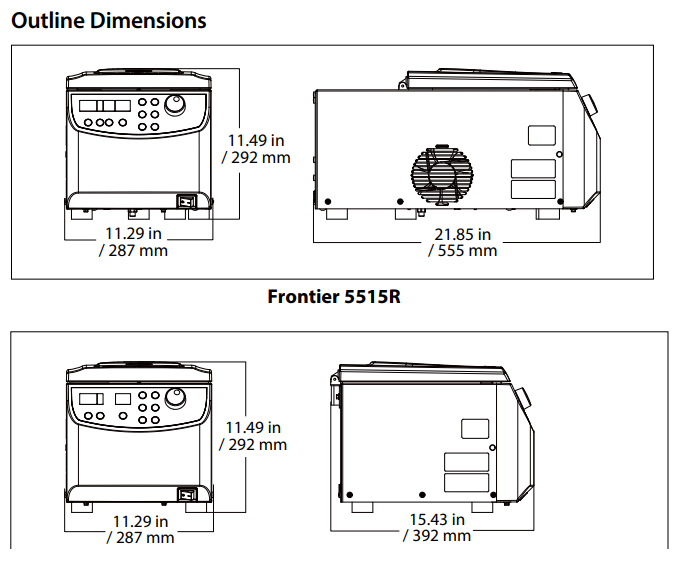

| Dimensions (HxLxW) |
11.5 in x 15.5 in x 11.3 in (292 mm x 393 mm x 287 mm) |
11.5 in x 22.1 in x 11.3 in (292 mm x 561 mm x 287 mm) |
| Display |
LCD with backlight |
LCD with backlight |
| Noise Level |
< 60 + 2 dB(A) |
< 57 + 2 dB(A) |
| Power |
AC Power (Included) |
AC Power (Included) |
| Pre-cool time |
Not applicable |
From room temperature to 4° < 10min |
| Rotor Compatibility |
Angle 24 x 1.5 ml / 2.0 ml
Angle 24 x 1.5 ml / 2.0 ml Sealable
Angle 12 x 5 ml Sealable
Angle 44 x 1.5 ml / 2.0 ml
Angle 4 x 8 place PCR Strips
Angle 30 x 1.5 ml / 2.0 ml Sealable
Hematocrit rotor, 24 × Capillaries |
Angle 24 x 1.5 ml / 2.0 ml
Angle 24 x 1.5 ml / 2.0 ml Sealable
Angle 12 x 5 ml Sealable
Angle 44 x 1.5 ml / 2.0 ml
Angle 4 x 8 place PCR Strips
Angle 30 x 1.5 ml / 2.0 ml Sealable |
| Running Time |
Continous |
Continous |
| Working Environment |
36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing) |
36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing) |
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Ohaus 30130873 Frontier Rotor, 12x5ml, Sealable R-A12X5/14MS
Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.
| Maximum Capacity (Rotor) |
12 x 1.5 / 2.0 ml |
| Maximum Relative Centrifuge Force (x g) |
23,542 g |
| Net Weight |
14.8 lb (6.71 kg) |
| Maximum Speed |
18,000 rpm |
| Outer/Inner Radius |
6.5 mm |
| Rotor Style |
Angel |
| Aerosol tight |
Not applicable |
| Maximum loading weight |
40.8 g |
| Acceleration Time(sec) |
25 / 240 |
| Angle |
40° |
| Deceleration Time(sec) |
20 / 240 |
| Dimensions (HxLxW) |
5.28 in (13.4 mm) |
| Tube diameter without adapter |
12 mm / 2.0 ml,1.5 ml |
| Working Environment |
-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: <95%) |
| Compatible Models |
FC5718;
FC5718R |
|
|
more info
|

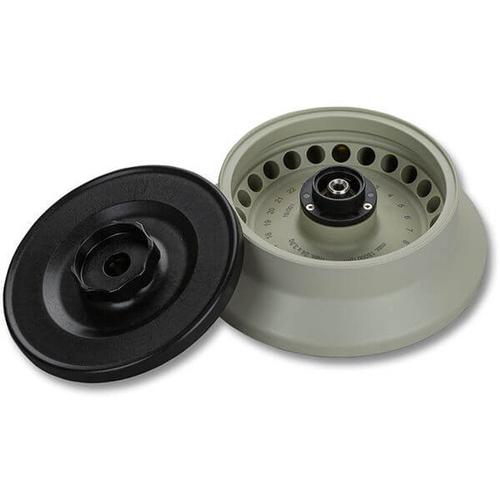

Ohaus 30130872 Frontier Rotor, 30x1.5/2.0ml, Sealable R-A30X2/13MS
Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.
| Maximum Capacity (Rotor) |
330 x 1.5 / 2.0 ml |
| Maximum Relative Centrifuge Force (x g) |
19,150 g |
| Net Weight |
3.75 lb (1.7 kg) |
| Maximum Speed |
13,500 rpm |
| Outer/Inner Radius |
9.4 cm |
| Rotor Style |
Angel |
| Aerosol tight |
Include |
| Maximum loading weight |
102 g |
| Maximum loading height |
45 mm |
| Acceleration Time(sec) |
29 / 235 |
| Angle |
45° |
| Deceleration Time(sec) |
27 / 258 |
| Dimensions (HxLxW) |
7.64 in (19.4 cm) |
| Tube diameter without adapter |
12 mm / 2.0 ml,1.5 ml |
| Working Environment |
-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: <95%) |
| Compatible Models |
FC5515;
FC5515R;
|
|
|
more info
|
Ohaus 30130874 Frontier Rotor, 4x8-Place PCR Stripes R-A4XPCR/15M
Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.
| Maximum Capacity (Rotor) |
4 x 0.2 ml PCR8 |
| Maximum Relative Centrifuge Force (x g) |
15,342 g |
| Net Weight |
1.46 lb (0.66 kg) |
| Maximum Speed |
15,000 rpm |
| Outer/Inner Radius (numeric) |
6.1 cm |
| Rotor Style |
PCR |
| Aerosol tight |
Not applicable |
| Maximum loading height |
45 mm |
| Maximum loading weight |
14 g |
| Acceleration Time(sec) |
17 / 150 |
| Angle |
45° |
| Deceleration Time(sec) |
20 / 95 |
| Dimensions (HxLxW) |
6.22 in (15.8 cm) |
| Tube diameter without adapter |
6 mm / 0.2 ml |
| Working Environment |
-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: <95%) |
| Compatible Models |
FC5515;
FC5515R;
|
|
|
more info
|
Ohaus 30130881 Frontier Hematocrit Rotor, 24xCapillaries
Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.
| Maximum Capacity (Rotor) |
24 x Capillaries |
| Maximum Relative Centrifuge Force (x g) |
14,970 g |
| Net Weight |
1.39 lb (0.63 kg) |
| Maximum Speed |
12,000 rpm |
| Outer/Inner Radius (numeric) |
9.3 cm |
| Rotor Style |
Angel |
| Aerosol tight |
Not applicable |
| Maximum loading height |
30 mm |
| Maximum loading weight |
4.8 g |
| Acceleration Time(sec) |
15 / 120 |
| Angle |
90° |
| Deceleration Time(sec) |
15 / 120 |
| Dimensions (HxLxW) |
7.95 in (20.2 cm) |
| Tube diameter without adapter |
N/A |
| Working Environment |
-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: <95%) |
| Compatible Models |
FC5515 |
|
|
more info
|
Ohaus 30372717 Frontier Angle Rotor - 44 x 1.5 / 2.0ml R-A44X2/15M
Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.
| Maximum Capacity (Rotor) |
44 x 1.5 / 2.0 ml |
| Maximum Relative Centrifuge Force (x g) |
21,379 g |
| Maximum Speed |
15,000 rpm |
| Rotor Style |
Angle |
| Aerosol tight |
N/A |
| Tube diameter without adapter |
12 mm / 2.0 ml,1.5 ml |
| Outer/Inner Radius |
8.4 cm ; 7.1 cm |
| Acceleration Time(sec) |
32 ; 265 |
| Angle |
32° / 55° |
| Deceleration Time(sec) |
18 ; 258 |
| Working Environment |
Temperature: -20ºC – 50ºC, Humidity: < 95% (-4°F – 122°F, 95%RH, non-condensing) |
|
|
more info
|
Ohaus 30210898 Angle Rotor 24 x 2.0 ml Spin Column R-A24X2/13M
OHAUS ANGLE ROTOR – 24 × 2.0 ml SPIN COLUMN (R-A24x2/13M)
The OHAUS R-A24x2/13M is a high-speed angle rotor designed for use with Frontier™ 5000 Series Microcentrifuges. It accommodates 24 × 2.0 ml spin column tubes, making it ideal for DNA/RNA extraction and molecular biology workflows. With a durable aluminum build and rotor angle of 45°, it offers reliable performance at speeds up to 13,500 rpm and 17,317 × g.
- Holds up to 24 × 2.0 ml spin column tubes
- Rotor angle: 45° for efficient sedimentation
- Max speed: 13,500 rpm
- Max RCF: 17,317 × g
- Durable aluminum construction
- Compatible with Frontier FC5513, FC5515, and FC5515R centrifuges
|
|
more info
|

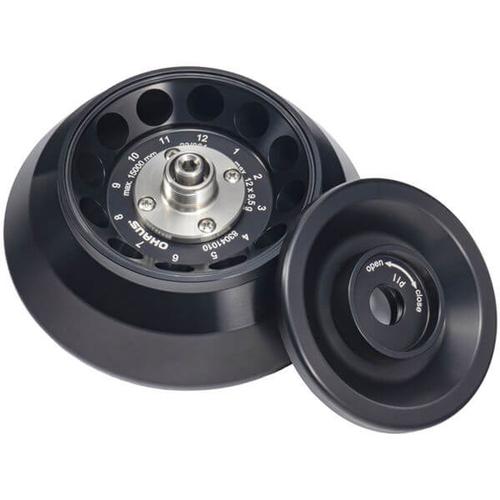

Ohaus 83041010 Rotor Angle 12x5ml FA ID Sealable R-A12X5/15MIS
OHAUS Frontier Angle Rotors – Combined Overview
This collection of OHAUS Frontier angle rotors serves specialized lab needs, from hematocrit analysis to PCR prep and high-volume separations. Each rotor is compatible with Frontier microcentrifuges and designed for specific tube types and workloads.
- Fixed-angle designs for efficient, reproducible centrifugation
- Durable aluminum construction
- Supports a variety of sample formats: capillary tubes, large tubes, sealable tubes, and PCR strips
|
|
|
|
|
|
|
|
|
