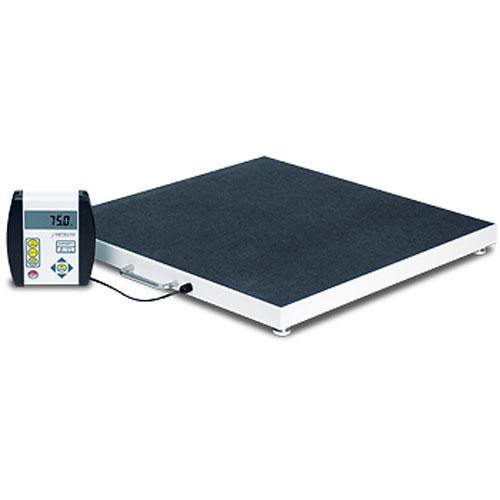

Ideal for any clinical application, this scale is low profile for patient comfort when stepping on and off the scale. With a built-in carrying handle, Detecto's model 6800 scale is easy to transport from office to office when required. Utilizing Detecto?s model 750 weight display and a universal bracket, the indicator may be mounted on a wall or desk for easy viewing. Powered by ?AA? batteries, this scale is truly portable when power outlets are not accessible. 10 foot long cable from indicator to the scale.
- Highly accurate digital weight display with Body Mass Index calculation and easy-to-read LCD display.
- Light weight design, battery power, and carrying handles make it ultra portable for convenient weighing wherever needed.
- Low profile platform provides easy access for weighing.
- Skid-proof and soft, but durable black rubber mat
Specifications Chart
Detecto 6800 Digital Bariatric Medical Scale
| Model |
6800 |
6800-AC |
6800-C |
6800-C-AC |
|
 |
|
|
|
| Capacity x Readability |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
| 450 kg x 0.1 kg |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
| Platform Size |
24" W x 2.125" H x 24" D |
| 61 cm W x 5 cm H x 61 cm D |
| DISPLAY DIMENSIONS: |
6.125" W x 6.75" H x 1.75" D
|
| 16 cm W x 17 cm H x 4 cm D |
| WEIGHT DISPLAY |
0.75" high digits - LCD |
| Power |
Optional model 6800-1045 AC adapter or 6 AA batteries (not included |
AC adapter(included) or 6 AA batteries (not included |
Optional model 6800-1045 AC adapter or 6 AA batteries (not included |
AC adapter(included) or 6 AA batteries (not included |
| Indicator |
Model 750 |
| LCD Digits |
0.7 in / 19 mm high LCD, 6 digit, 7 segment |
| Keypad Buttons |
ON/OFF, ZERO, UNITS, LOCK/RELEASE, BMI/ENTER, PRINT, arrow keys |
| Connectivity |
RS232 |
RS232 |
Wi-Fi/Bluetooth |
Wi-Fi/Bluetooth |
| Operating Temperature |
14 to 104 �F / -10 to +40 �C |
| Net Weight |
92 lb / 42 kg |
| Shipping Weight |
45 lb / 20.4 kg |
| Country of Origin |
USA |
| UPC Code |
809161137309 |
809161318807 |
809161323900 |
809161324006 |
| Model |
6800 |
| Capacity |
1000 x 0.2 lb |
| 450 x 0.1 kg |
| Platform |
24" x 24" |
| 610 mm x 610 mm |
| Display |
0.75" high digits - LCD |
| Construction |
High-performance, baked-on, powder-painted steel |
| Power |
AC adapter or 6 "AA" size alkaline batteries (not included) |
| Shipping Weight |
43 lb / 20 kg |
750 Indicator Specifications
| Model |
750 Indicator |
| Power Requirements |
6 "AA" size Alkaline, Ni-Cad or NiMH batteries ( not included ) OR an optional 100 to 240 VAC 50/60Hz 12 VDC 1A wall plug-in UL/CSA listed AC power supply. |
| Operating Temperature |
14 to 104 �F (-10 to +40 �C) |
| Display |
Six digit, seven segment, 0.7 inch high LCD |
| Sensitivity |
0 to 2.4 mV/V |
| Signal Input Range |
0 to 12mV max |
| Transducer Excitation |
5.0 VDC |
| Resolution |
2,500 divisions |
| Capacity |
400 x 0.2 lb (181.4 x 0.1 kg) |
| Division Value |
1, 2, or 5 |
| Sample Rate |
1 to 16 samples per second |
| Auto Zero Range |
0.5 or 1 through 9 divisions |
| Weighing Units |
Pounds, kilograms, pounds/kilograms and kilograms/pounds |
| Keyboard |
Membrane type with 5 keys and 4 directional arrows |
| Enclosure Size |
6.125" W x 6.75" H x 1.75" D
16 cm W x 17 cm H x 4 cm D |
| Construction |
Painted Steel |
Detecto medical scales are made in the USA
� |
