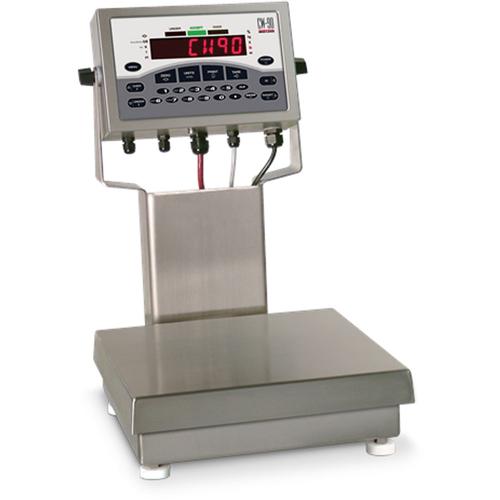

Rice Lake CW-90 105959 Over/Under Legal for trade Checkweigher Scale 25 lb x 0.005 lb |
|
| Rice Lake’s CW-90 bench checkweigher accelerates weighing processes and reduces production downtime—two critical factors to any company’s bottom line. Ease of use, real-time data collection and rugged stainless steel construction make the CW-90 the equipment of choice for operators, quality control and maintenance departments. The CW-90 is also competitively priced, making it an appealing solution for all light industrial settings more ... |
|
Scales >
Industrial Scales >
Accessories
|
|
|
|
|
|
Features
The Bench Checkweigher of Choice
Rice Lake’s CW-90 bench checkweigher accelerates weighing
processes and reduces production downtime—two critical
factors to any company’s bottom line. Ease of use, real-time
data collection and rugged stainless steel construction make
the CW-90 the equipment of choice for operators, quality
control and maintenance departments. The CW-90 is also
competitively priced, making it an appealing solution
for all light industrial settings.
Easy to Configure
The CW-90s configuration menu is accessible
through the front keypad, eliminating the
need to open the indicator and risk exposure to
moisture or contaminants. The CW-90 stores detailed information
for up to 50 separate IDs, allowing easy recall of previously saved information.
For additional storage, optional WeighVault®
PC software collects data from single
or multiple CW-90s and provides detailed reports that can be exported to Excel®
,
Word or PDF
Simple to Use
The CW-90s straightforward operation meets the needs of today’s lean manufacturers:
Simply watch the over/under lights! Program the unit with specified weight limits
and a red light will display an underweight condition, yellow for over and green for
target weights. Rice Lake’s CW-90 will help error-proof your production process
and achieve productivity goals
Indicator:
- Membrane keypad consisting of ZERO, UNITS, PRINT, TARE, OVER, UNDER, ID, TARGET, 0-9, DECIMAL, CLEAR, ENTER, MENU, POWER
- 304 stainless steel, IP66 rated
- Gore™ PreVent® breather vent
- Storage for up to 50 IDs, expandable with optional WeighVault PC software
- Unit of Measure: kg, gm, lb, oz, lb/oz
- High-intensity LED display
- Battery-backed time and date
- Two full-duplex serial ports
- Configurable print formats
- Audit trail tracking
- Optional Communications: Ethernet, USB or Fiber Optic
- Four configurable digital I/O
- Reflash memory to upgrade firmware
Scale:
- • Aluminum, environmentally sealed load cell
- • 304 stainless steel
- • Five-point overload protection
Weight:
29.00 lb
|
|
Other Rice Lake CW-90 Over/Under Legal for Trade Checkweigher Scales
|
Specifications
| Model |
105957 |
105958 |
105959 |
105960 |
105961 |
105962 |
| Capacity x Readability |
5 lb x 0.001 lb
2.5 kg x 0.0005 kg
80 oz x 0.02 oz |
10 lb x 0.002 lb
5 kg x 0.001 kg
160 oz x 0.05 oz |
25 lb x 0.005 lb
10 kg x 0.002 kg
400 oz x 0.1 oz |
25 lb x 0.005 lb
10 kg x 0.002 kg
400 oz x 0.1 oz |
50 lb x 0.01 lb
25 kg x 0.005 kg
800 oz x 0.2 oz |
100 lb x 0.02 lb
50 kg x 0.01 kg
1,600 oz x 0.5 oz |
| Size |
10 x 10 x 4.25 in |
10 x 10 x 4.25 in |
10 x 10 x 4.25 in |
12 x 12 x 4.25 in |
12 x 12 x 4.25 in |
12 x 12 x 4.25 in |
| COLUMN HEIGHT |
12 in |
12 in |
12 in |
12 in |
12 in |
12 in |
| Legal For Trade |
Indicator: NTEP CC 08-092, Class III/IIIL 10,000 d
Scale: NTEP CC 95-072, Class III 5,000 d |
Indicator: Measurement Canada AM-5710, Class III 10,000 d
Scale: Measurement Canada AM-5082, Class III 5,000 d |
| Power - AC |
Line voltages: 115/230 VAC
Frequency: 50/60Hz |
| Power - Plug |
NEMA 5-15 |
| Power Consumption |
1.5A at 115 VAC (8 W),0.75A at 230 VAC (8 W)
|
| Excitation Voltage |
+5 VDC 8 x 350O or 16 x 700O load cells |
| Analog Signal Input Range |
0.5mV/V - 4.5mV/V |
| Analog Signal Sensitivity |
0.3 uV/graduation minimum, 1.5 uV/ graduation recommended |
| Measurement Rate |
960,480, 240, 120, 60, 30, 15, 7.5 per second |
| System Linearity |
±0.01% full scale |
| Digital I/O |
4 channels on CPU board |
| Circuit Protection |
RFI, EMI, ESD protection |
| Display |
Large 0.8 in 14 segment, six digit high-intensity red LED display |
| Status Annunciators |
Designators for %, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion |
| Operating Temperature |
Legal: 14º F to 104º F (-10ºC to 40ºC) |
| Rating/Material |
IP66, stainless steel |
| Display Resolution |
100,000 graduations maximum |
| Load Cell |
Aluminum, environmentally sealed |
| Warranty |
Two-year limited warranty |
| Approvals |
Indicator: NTEP CC 08-092, Class III/IIIL 10,000 d
Measurement Canada AM-5710, Class III 10,000 d
OIML R76/2006-GBI-10.02
TC GB-1385
TAC UK2900
UL and CUL listed
CE marked
Scale: NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082, Class III 5,000 d
NSF |
| Analog Signal Input Range |
0.5mV/V - 4.5mV/V |
|
Other Models |
| Models 230 V |
118891 |
118892 |
118893 |
118895 |
118896 |
118897 |
| Capacity x Readability |
2.5 kg x 0.0005 kg
5 lb x 0.001 l
80 oz x 0.02 oz |
5 kg x 0.001 kg
10 lb x 0.002 lb
160 oz x 0.05 oz |
10 kg x 0.002 kg
25 lb x 0.005 lb
400 oz x 0.1 oz |
10 kg x 0.002 kg
25 lb x 0.005 lb
400 oz x 0.1 oz |
25 kg x 0.005 kg
50 lb x 0.01 lb
800 oz x 0.2 o |
50 kg x 0.01 kg
100 lb x 0.02 lb
1,600 oz x 0.5 oz |
| Models 230V CE marked/OIML approved (CEE 7/7 plug)) |
106123 |
106124 |
106125 |
106126 |
106127 |
106128 |
| Capacity x Readability |
3 kg x 0.001 kg |
6 kg x 0.002 kg |
15 kg x 0.005 kg |
15 kg x 0.005 kg |
30 kg x 0.01 kg |
60 kg x 0.02 kg |
|
|
|
|
|
|
|
Optional Accessories
more info
|
Rice Lake 77142 Ethernet TCP/IP for CW-90 and CW90X
Rice Lake 77142 Ethernet TCP/IP for CW-90 and CW90X
|
|
more info
|
Rice Lake 108671 Wireless LAN card Wi-Fi 802.11 A/B for CW-90 and CW90X
Rice Lake 77142 Wireless LAN card Wi-Fi 802.11 A/B for CW-90 and CW90X
|
|
more info
|
Rice Lake 93245 USB Port (PC connection only) cable included for CW-90 and CW90X
Rice Lake 93245 USB Port (PC connection only) cable included for CW-90 and CW90X
|
|
more info
|
Rice Lake 171968 Firmware download cable for CW-90 and CW90X
Rice Lake 171968 Firmware download cable for CW-90 and CW90X
|
|
more info
|
Rice Lake 96736 Fiber optic board for CW-90 and CW90X
Rice Lake 96736 Fiber optic board for CW-90 and CW90X
|
|
more info
|
Rice Lake 78026 Fiber optic, duplex cable 100 ft for 320IS, CW-90 and CW90X, 882IS
Rice Lake 78026 Fiber optic, duplex cable 100 ft for 320IS, CW-90 and CW90X
|
|
more info
|
Rice Lake 117358 WeighVault™ for CW-90 software (requires part number 77142 or 108671) for CW-90 and CW90X
Monitor Your Production with WeighVault
This specialized PC software for use with Rice Lake’s CW-90 and CW-90X checkweighers makes data entry easier than ever while expanding data storage and reporting abilities.
As weighing occurs, WeighVault stores the details of each transaction for either a single scale or multiple scales. A variety of transaction and productivity reports can then be exported into word processing, spreadsheet or PDF formats for better control over weight data and overall business performance.
Predicting growth? There’s no better reason to explore WeighVault software. WeighVault users can boost their checkweigher’s 50 product ID storage limitation to nearly limitless potential, and manage as many scales as necessary. And with a direct connection to your PC you’ll be able to quickly program, edit and manage each checkweigher and each unique product ID right from your PC’s keyboard.
- Specialized PC software makes data entry easy
- Boost product ID storage to nearly limitless potential, and manage as many scales as necessary
- Eliminates front-panel entry of ID parameters
- Quickly program, edit and manage scales and each unique product ID right from your PC
- Stores the details of each transaction for either a single scale or multiple scales
- Collects data as transactions occur and provides detailed transaction and productivity reports
- Allows users to add, edit and access IDs over a network connection
- Reports can be exported into word processing, spreadsheet of PDF formats
|
|
|
|
|
|
|
|
|
