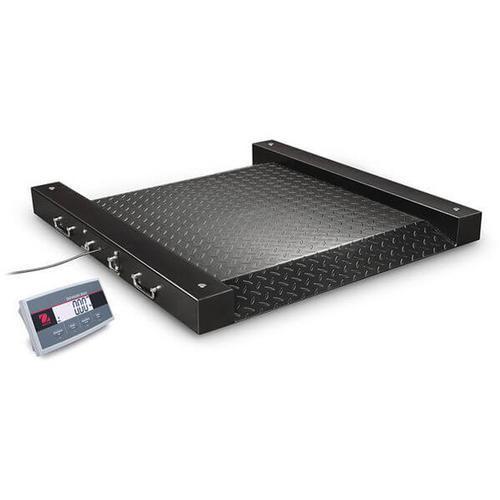

Ohaus DEFENDER 2500 i-DFD25P1000E1R 3 x 3 ft Drum Scale - 1000 x 0.2 lb |
|
The OHAUS DFD25P Series includes five versatile drum and ramp floor scales: i-DFD25P500E1S, i-DFD25P1000E1S, i-DFD25P2500E1S, i-DFD25P1000E1R, and i-DFD25P2500E1R. These models are designed for high-accuracy weighing, counting, checkweighing, and totalization in warehouse, industrial, and shipping environments. more ... |
Industrial Scales >
Floor Scales >
Drum Scale
|
|
|
|
Features
OHAUS DFD25P FLOOR SCALES
The OHAUS DFD25P Series includes five versatile drum and ramp floor scales: i-DFD25P500E1S, i-DFD25P1000E1S, i-DFD25P2500E1S, i-DFD25P1000E1R, and i-DFD25P2500E1R. These models are designed for high-accuracy weighing, counting, checkweighing, and totalization in warehouse, industrial, and shipping environments. Featuring durable painted steel platforms, a user-friendly i-DT25P indicator with multiple connectivity options, and optional portability features like wheels and built-in ramps, the DFD25P Series ensures efficient and reliable performance.
- Durable design: Powder-coated carbon steel platform with treaded surface, IP65 junction box, and top-access load cells.
- Easy operation: i-DT25P ABS plastic indicator with white backlit LCD, RS232 and USB-C interfaces.
- Portable configurations: Models include integrated wheels and handles; “R” models feature a built-in ramp for easy loading.
- Flexible power options: AC adapter and USB-C included, plus optional rechargeable battery kit.
|
|
Specifications
|
i-DFD25P500E1S |
i-DFD25P1000E1S |
i-DFD25P2500E1S |
i-DFD25P1000E1R |
i-DFD25P2500E1R |
Capacity x Readability |
500 x 0.1 lb 250 x 0.05 kg |
1000 x 0.2 lb 500 x 0.1 kg |
2500 x 0.5 lb 1250 x 0.2 kg |
1000 x 0.2 lb 500 x 0.1 kg |
2500 x 0.5 lb 1250 x 0.2 kg |
Platform Size |
30 x 30 inch 762 x 762 mm |
30 x 30 inch 762 x 762 mm |
30 x 30 inch 762 x 762 mm |
36 x 36 inch 914.4 x 914.4 mm |
36 x 36 inch 914.4 x 914.4 mm |
Platform Material |
Painted Carbon Steel, Treaded Surface, Fixed Top Plate |
Feet |
4 x Swivel Design, Screw-In, Carbon Steel with Rubber Bottom Cap, Top Adjustable |
Maximum Central Load |
100% of Maximum Capacitye |
Load Cell |
4 x IP67 Nickel Plated Alloy Steel Load Cells, Shear Beam |
Junction Box |
IP65, Die-cast Aluminum, with 6 m (20 ft) Indicator Cable |
Operating Temperature |
50 oF to 104 oF / 10 oC to 40 oC |
Indicator |
i-DT25P, ABS plastic housing |
Weighing Units |
lb, kg |
Modes |
Weighing, Parts Counting, Totalization, Dynamic Weighing/Display Hold, Peak Hold |
Display |
6-digit, 7-segment LCD display with white backlight, 1.1 in./28 mm high digits |
Keypad |
4 Function Mechanical Switches and Raised Tactile Keys |
Stabilization Time |
Within 1 seconds |
Auto-zero Tracking |
Off, 0.5, 1 or 3d |
Zeroing Range |
2% or 100% of capacity |
Span Calibration |
5 lb or kg to 100% of capacity |
Interfaces |
RS232 & USB (Type C) Standard |
Power |
Standard AC adapter with USB type C cable, detachable (included) or 4 AA batteries (not included) |
Battery |
20 hours continuous use with backlight off |
Indicator Dimensions (W x D x H) |
8.0 x 4.1 x 1.7 in 205 x 105 x 43 mm |
Scale Shipping Dimensions (W x D x H) |
41.1 x 40.2 x 7.9 in. 1,044 x 1,022 x 200 mm |
46.9 x 46.3 x 7.9 in. 1,190 x 1,175 x 200 mm |
Scale Net Weight |
101 lb / 46 kg |
126 lb / 57 kg |
Scale Shipping Weight |
110 lb / 50 kg |
135 lb / 61 kg |
Other Standard Features and Equipment
Selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto-off, auto tare.
Alloy steel feet with top height adjustment. Parts Counting and Checkweighing modes for packaging and checking inventories, Totalization mode allows
running tally of weight totals, Dynamic Weighing/Display Hold feature with selectable weight threshold for wheelchair and medical weighing, painted and
stainless steel floor stands (available as accessories)
Compliance
- Product Safety (indicator): UL 61010-1; CAN/CSA C22.2 61010-1; IEC/EN 61010-1
- Electromagnetic Compatibility: IEC/EN 61326-1 Class B, basic environments; FCC Part 15 Class A; Canada ICES-003 Class A
- Compliance Marks: CSA, CE
- Other: WEEE, RoHS
Accessories (Compatible with All DFD25P Models)
- Auxiliary Display AD7-MD - 30472063
- Printer, Impact SF40A - 30064203
- Printer, Thermal STP-103 US - 80251992
- Cable RS232 IBM 9-pin Male-to-Female - 80500525
- DB9 Adapter Male-to-Male - 30692384
- Floor Stand, 39" Painted - 30531244
- Floor Stand, 39" Stainless Steel - 30539553
- Interface Kit RS232 to Ethernet - 30304102
- Interface Kit RS232 to USB - 30304101
|
|
|
|
