Ohaus 30573784 Shaker Orbital SHHSMPDG US |
|
| The OHAUS SHHSMPDG is a high-speed orbital microplate shaker with a compact, heavy-duty design ideal for consistent, high-throughput shaking of microplates and deep-well plates. Featuring an orbital motion with a 3.6 mm throw, this model supports speeds from 600 to 2,500 rpm and is capable of accommodating up to 48 microplates or 6 deep-well plates. Its durable construction, digital LED control, and programmable timer make it perfect for demanding lab environments. more ... |
|
Laboratory Equipment >
Analytical Balances >
Micro - 0.001 mg
|
|
|
|
|
|
Features

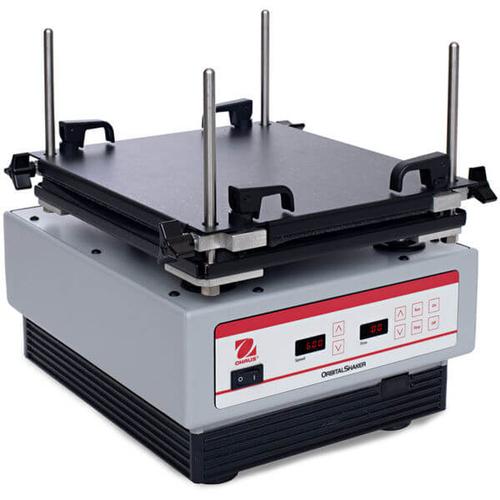

OHAUS Orbital Shaker – SHHSMPDG (US Version)
The OHAUS SHHSMPDG is a high-speed orbital microplate shaker with a compact, heavy-duty design ideal for consistent, high-throughput shaking of microplates and deep-well plates. Featuring an orbital motion with a 3.6 mm throw, this model supports speeds from 600 to 2,500 rpm and is capable of accommodating up to 48 microplates or 6 deep-well plates. Its durable construction, digital LED control, and programmable timer make it perfect for demanding lab environments.
- Compact orbital shaker optimized for microplates
- Digital LED control panel for independent speed and time settings
- Built-in timer up to 160 hours with continuous or countdown modes
- Accommodates up to 48 microplates or 6 deep-well plates
|
|
Specifications
| Model |
SHHSMPDG |
| Motion |
Orbital, 0.14 in. / 3.6 mm |
| Speed Range |
600 rpm to 2500 rpm |
| Timer |
1 second to 160 hours |
| Control |
Digital |
| Communication |
RS-232 Interface |
| Capacity |
48 microplates |

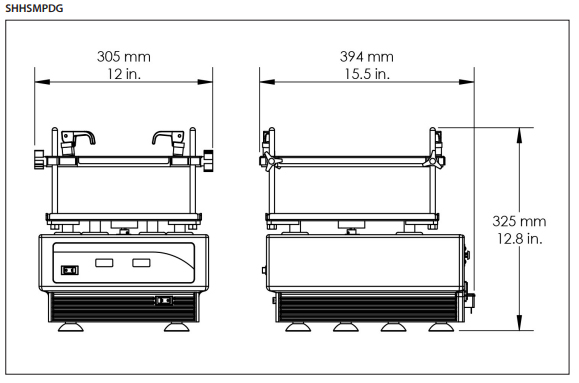

| Dimensions (H x L x W) |
12.8 x 15.5 x 12 in / 32.5 x 39.4 x 30.5 cm |
| Tray Dimensions (L x W) |
12.3 x 11 in / 31.1 x 27.9 cm |
| Net Weight |
48.1 lb / 21.8 kg |
| Power |
120V, 50/60Hz / 230V, 50/60Hz |
| Power Consumption |
120 W |
| Working Environment |
39 - 104 °F, 20% to 80% RH*, non-condensing / 4 - 40 °C, 20% to 80% RH*, non-condensing |
*RH = Relative Humidity
Other Standard Features & Equipment
Die Cast Aluminum construction, programmable pulse feature with adjustments for pulse ON & pulse OFF between 1 & 59 seconds. Program timer to count down from set time and turn off when timer reaches zero or run in continuous mode and timer will count accumulated time until user turns it off.
Compliance
- Product Safety: CAN/CSA C22.2 No. 61010-1, CAN/CSA C22.2 No. 61010-2-051, UL 61010-1
- Electromagnetic Compatibility: ICES-003 Class A, FCC Part 15 Class A
- Compliance Marks: TÜV SÜD
|
|
|
* within the 48 continental US States
|
| |
|
|
|
|
