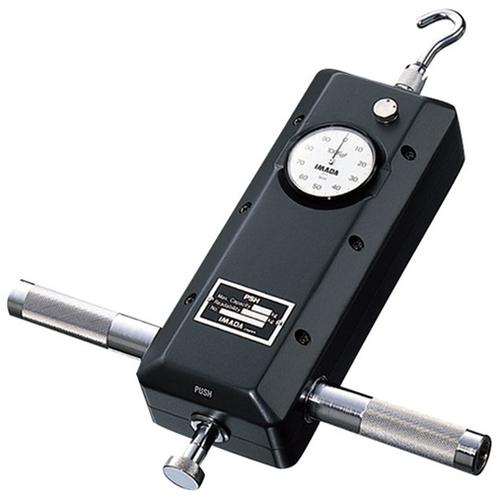

Imada ESH-200KG Force Gauge, 200 kg x 1 kg

These mechanical force gauges are designed for high capacity measurements up to 500 lbs (300 kg). The rugged metal housing and heavy duty springs will withstand the harsh, rugged environment of a plant, yet the highly accurate, springs ensure precision more ...
Test Equipment > Force Gauges > Mechanical Force Gauges
Imada ESH-200KG Force Gauge, 200 kg x 1 kg

Specifications Chart View Full Detail Page


More Products in Series

Have Questions?
Call USoremail Us
Our Staff will be glad to help

Imada ESH-200KG Force Gauge, 200 kg x 1 kg

Price: $1,257.00


Available to Ship


View Features

Imada
SKU: ESH-200KG

Features

ESH Mechanical Force Gauges
High Capacity Mechanical Force Gauge – Series ESH
Up to 500 lbf capacity (Also available in kgf or N models)

The ESH Mechanical Force Gauge is designed a high capacity force gauge with several ranges from 200 lbf up to 500 lbf (300 kgf). The heavy duty metal housing and heavy duty springs will withstand the harsh rugged environment of a manufacturing plant. The highly accurate, matched springs will ensure reliable results and retain their accuracy over long periods. The tare ring allows you to zero the gauge and compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch enables users to observe transients or capture peaks. This high capacity mechanical force gauge is available in pounds, kilograms and Newtons models. No batteries are needed and the unit is intrinsically safe in hazardous environments.

What’s Included with the Gauge?
Sold in kit form complete with force gauge, hard plastic carrying case, handles, measuring attachments includeing a hook and flat head. Four installation bolts are also included for mounting the gauge to a test stand or other permanent location.

Other attachments for a variety of special applications are available. Click here to see our complete catalog of attachments.

All gauges include a free certificate of calibration traceable to NIST.ISO-17025 certificates are available for an additional charge.

Note: Mechanical force gauges are not recommended for destructive testing or shock load applications.

For capacities under 220 lbf use FB or PS series mechanical force gauges.

The ESH/PSH series mechanical force gauges are designed for high capacity measurements up to 500 lbs (300 kg). The rugged metal housing and heavy duty springs will withstand the harsh, rugged environment of a manufacturing plant, yet the highly accurate, matched springs will ensure reliable results. Sold completely in kit form with gauge, hard plastic carrying case, handles, measuring attachments (ESH includes small hook and flat head - PSH includes flat head, conical, chisel, notched and small hook), and extension shaft. Four installation bolts are also included for mounting the gauge on a test fixture or other permanent location

  • With Reverse Reading Option
  • Simple, rugged and virtually maintenance free
  • High degree of accuracy
  • No batteries needed
  • Capacity up to 500 pounds (push/pull)
  • Rugged design for heavy usage
  • Intrinsically safe in hazardous environments
  • Heavy duty metal construction
  • Tare ring
  • Real time and peak mode
  • Full set of accessories and carrying case included

Weight: 10.00 lb
Other Imada ESH/PSH Mechanical Force Gauges
Imada ESH-200 Force Gauge, 200 lb x 1 lb
ESH-200
Force Gauge
200 lb x 1 lb

$1,123.00
Imada ESH-300 Force Gauge, 300 lb x 2 lb
ESH-300
Force Gauge
300 lb x 2 lb

$1,123.00
Imada ESH-50KG Force Gauge, 50 kg x 0.5 kg
ESH-50KG
Force Gauge
50 kg x 0.5 kg

$1,123.00
Imada ESH-100KG Force Gauge, 100 kg x 0.5 kg
ESH-100KG
Force Gauge
100 kg x 0.5 kg

$1,123.00
Imada ESH-400 Force Gauge, 400 lb x 2 lb
ESH-400
Force Gauge
400 lb x 2 lb

$1,257.00
Imada ESH-500 Force Gauge, 500 lb x 2.5 lb
ESH-500
Force Gauge
500 lb x 2.5 lb

$1,257.00
Imada ESH-200KG Force Gauge, 200 kg x 1 kg
ESH-200KG
Force Gauge
200 kg x 1 kg

$1,257.00

You are viewing this product
Imada ESH-300KG Force Gauge, 300 kg x 2 kg
ESH-300KG
Force Gauge
300 kg x 2 kg

$1,257.00
Imada PSH-200 Force Gauge, 200 lb x 1 lb
PSH-200
Force Gauge
200 lb x 1 lb

$1,337.00

Specifications

Pounds Kilograms Newtons
Model Capacity x Resolution Model Capacity x Resolution Model Capacity x Resolution
ESH-200 200 lbf (1 lbf) ESH-100 kgf 100 kgf (0.5 kgf) ESH-1000 N 1000 N (5 N)
ESH-300 300 lbf (2 lbf) ESH-200 kgf 200 kgf (1 kgf) ESH-2000 N 2000 N (10 N)
ESH-400 400 lbf (2 lbf) ESH-300 kgf 300 kgf (2 kgf) ESH-3000 N 3000 N (20 N)
ESH-500 500 lbf (2.5 lbf)
PSH-200 200 lbf (1 lbf)
